1291

Prix régulier€208,95
/

cadre de montage

installation frame (backbox) – conçu comme un élément du système complet

Le cerasonar installation frame (backbox) est bien plus qu’une simple solution de montage. Développé comme partie intégrante du système cerasonar complet, il crée un environnement acoustique défini pour l’enceinte ou le caisson de basses. Il permet ainsi d’obtenir des performances prévisibles, de simplifier l’installation et de maintenir une qualité sonore constante dans différentes structures de construction.

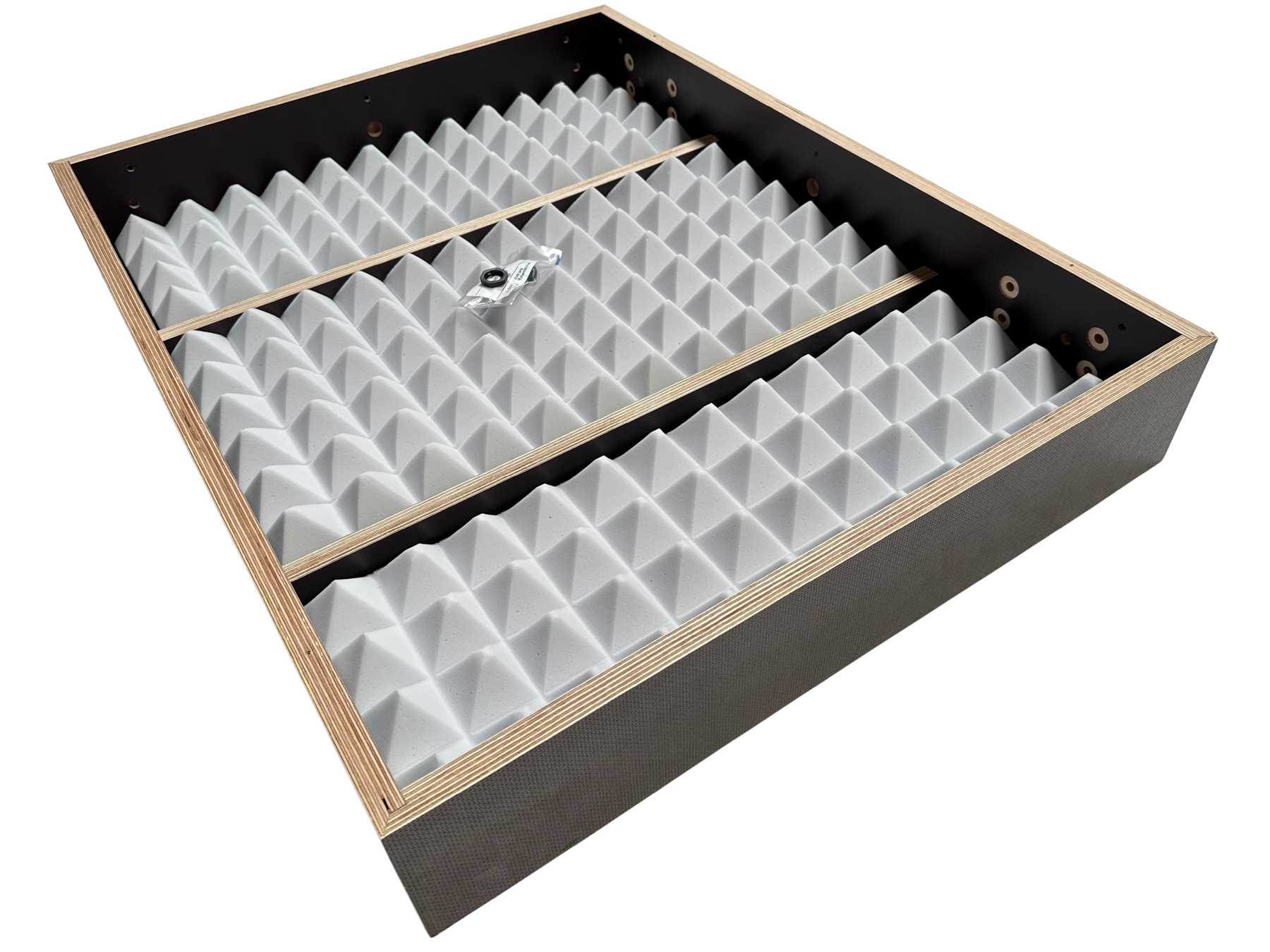

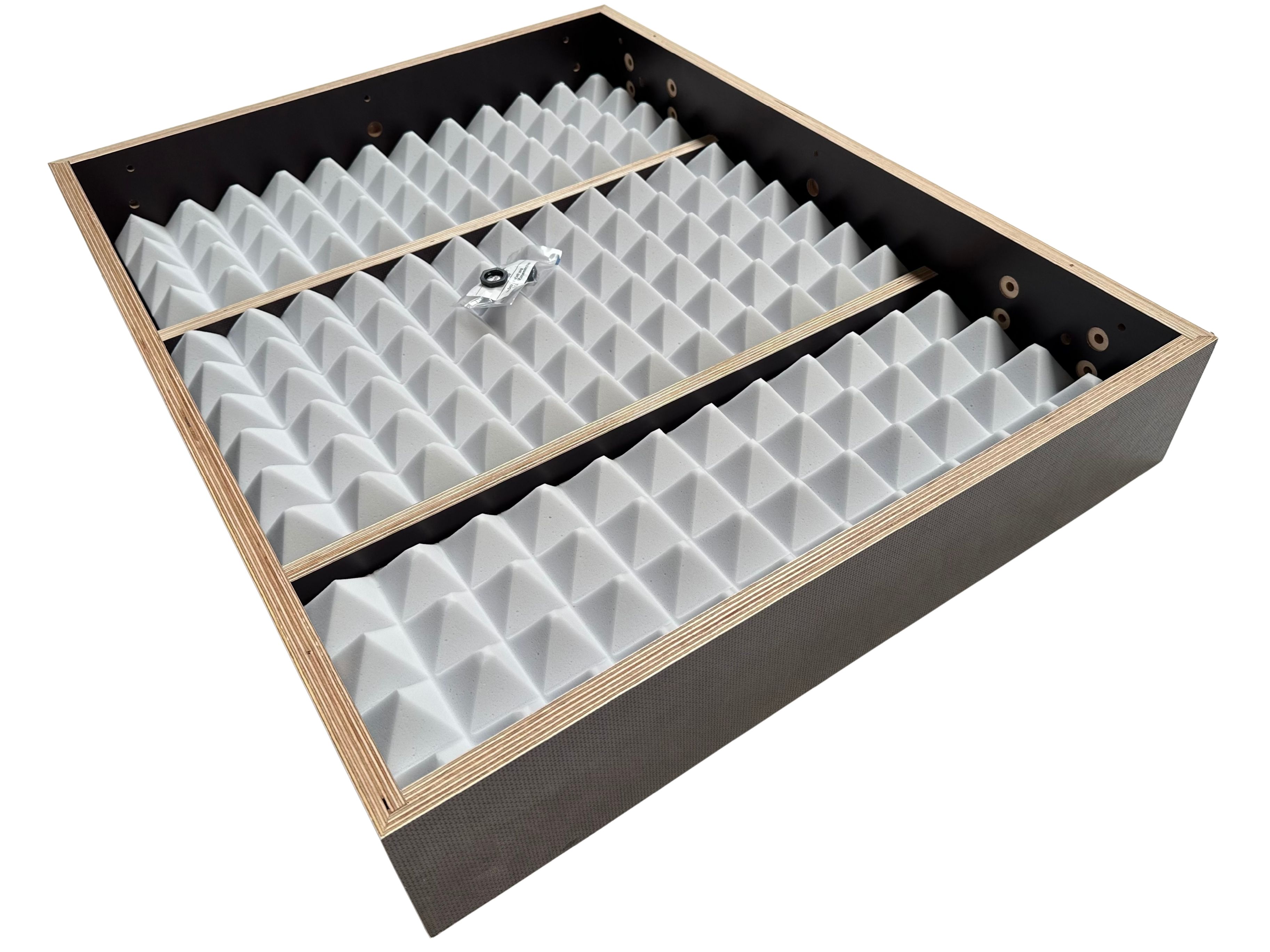

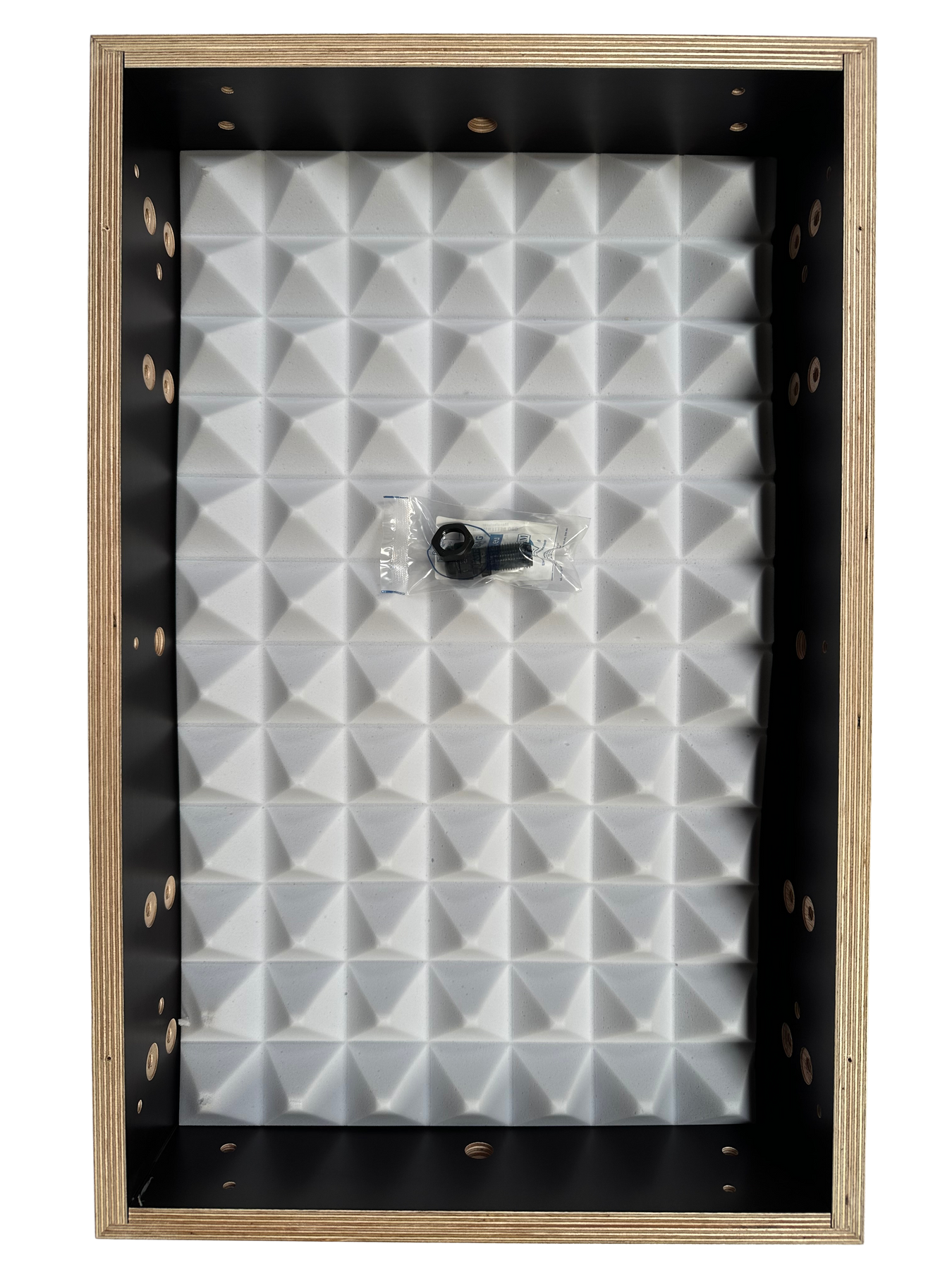

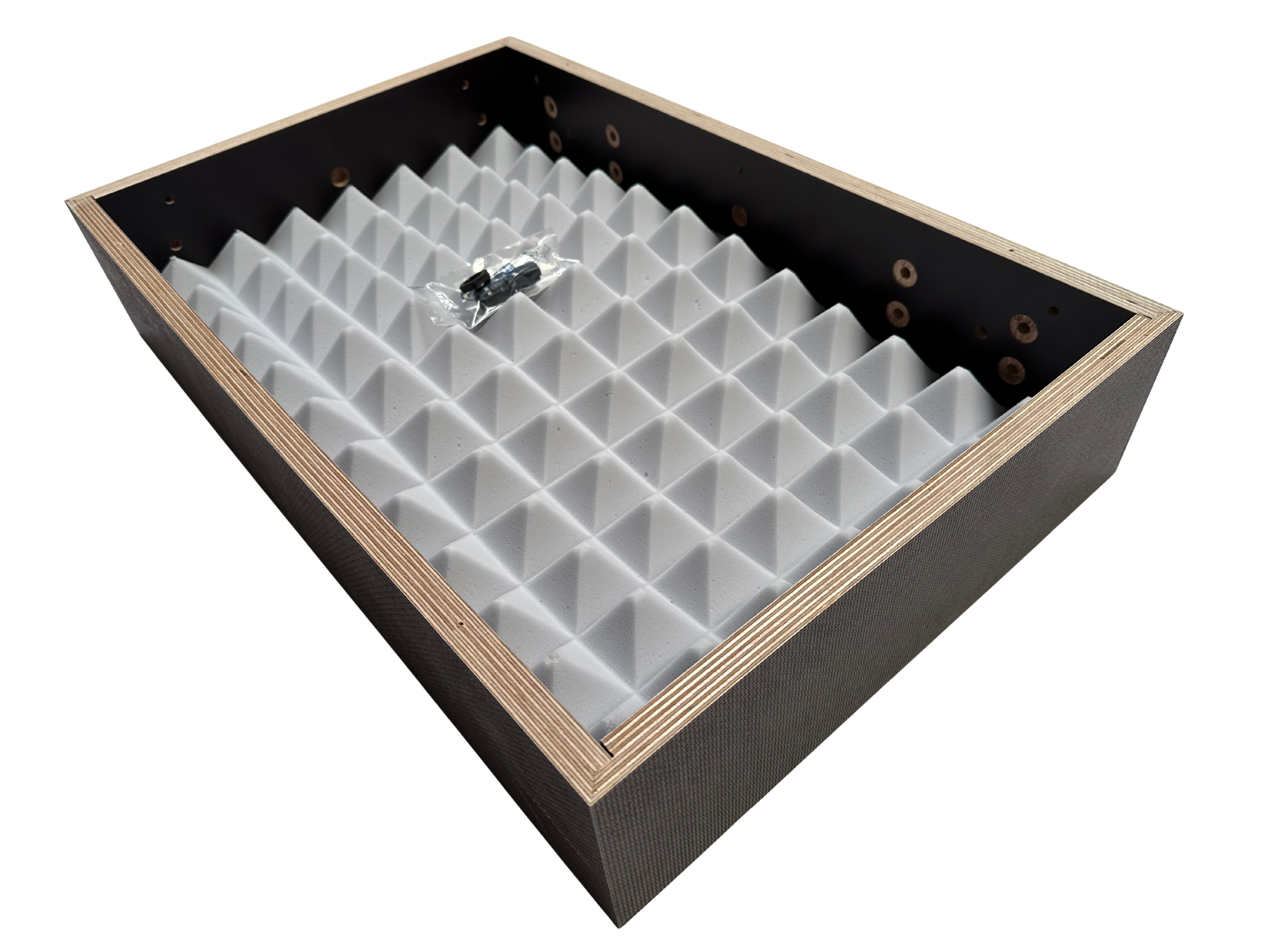

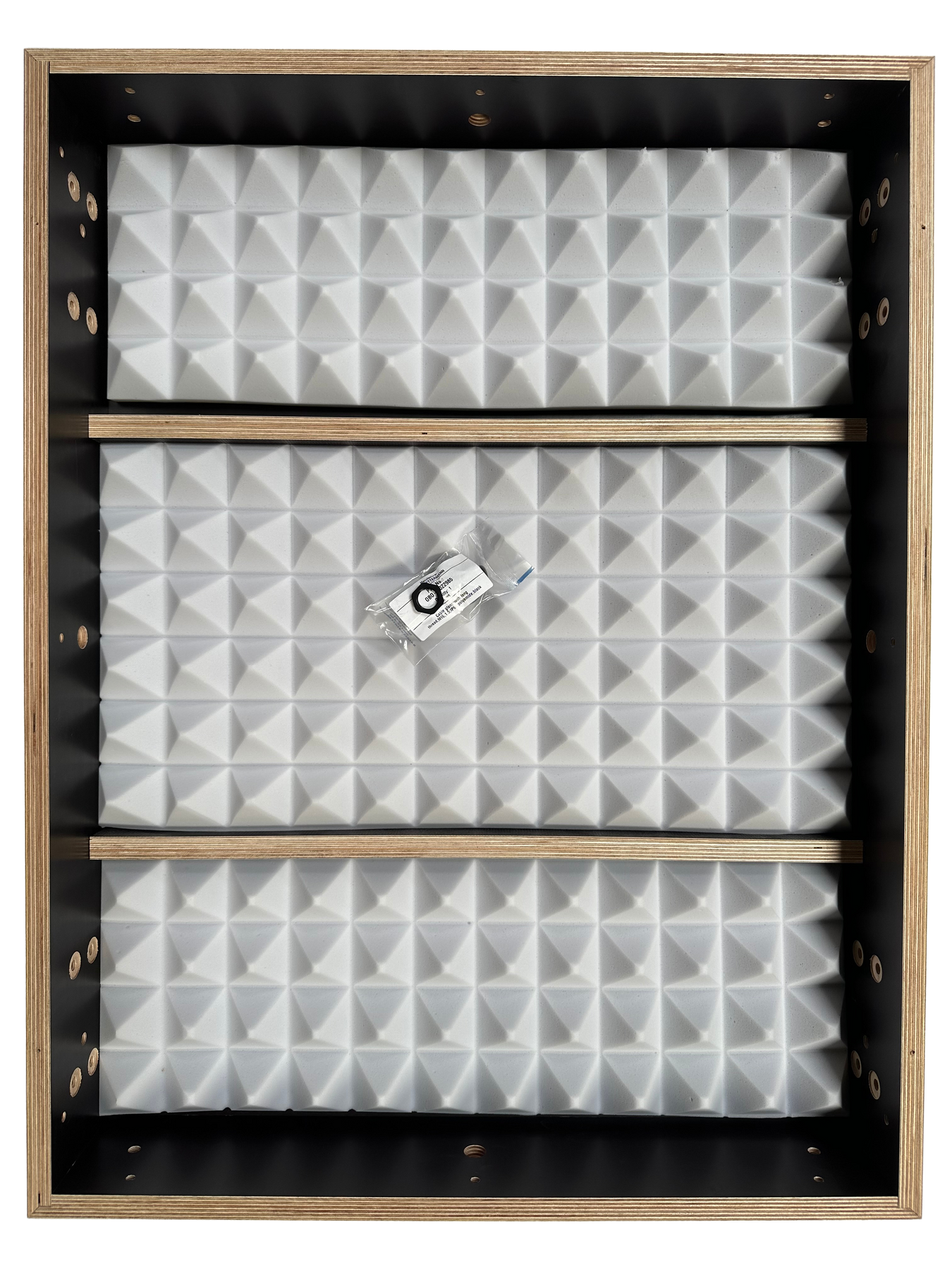

L’installation frame (backbox) est fabriqué en contreplaqué résistant à l’eau et livré avec une absorption acoustique Basotect® intégrée. Celle-ci réduit efficacement le rayonnement arrière tout en créant une base de montage stable et durable. Le volume intérieur défini permet à l’enceinte ou au caisson de fonctionner comme prévu, indépendamment de la structure murale ou du plafond environnant.

Grâce à sa conception polyvalente, l’installation frame (backbox) peut être utilisé dans de nombreuses situations, notamment le béton coulé sur place, la maçonnerie, les structures en bois et les plafonds en plaques de plâtre. Des vibration dampers optionnels réduisent en outre la transmission des vibrations solidiennes et rendent le système particulièrement adapté aux plafonds suspendus en plaques de plâtre et aux autres structures sensibles aux vibrations.

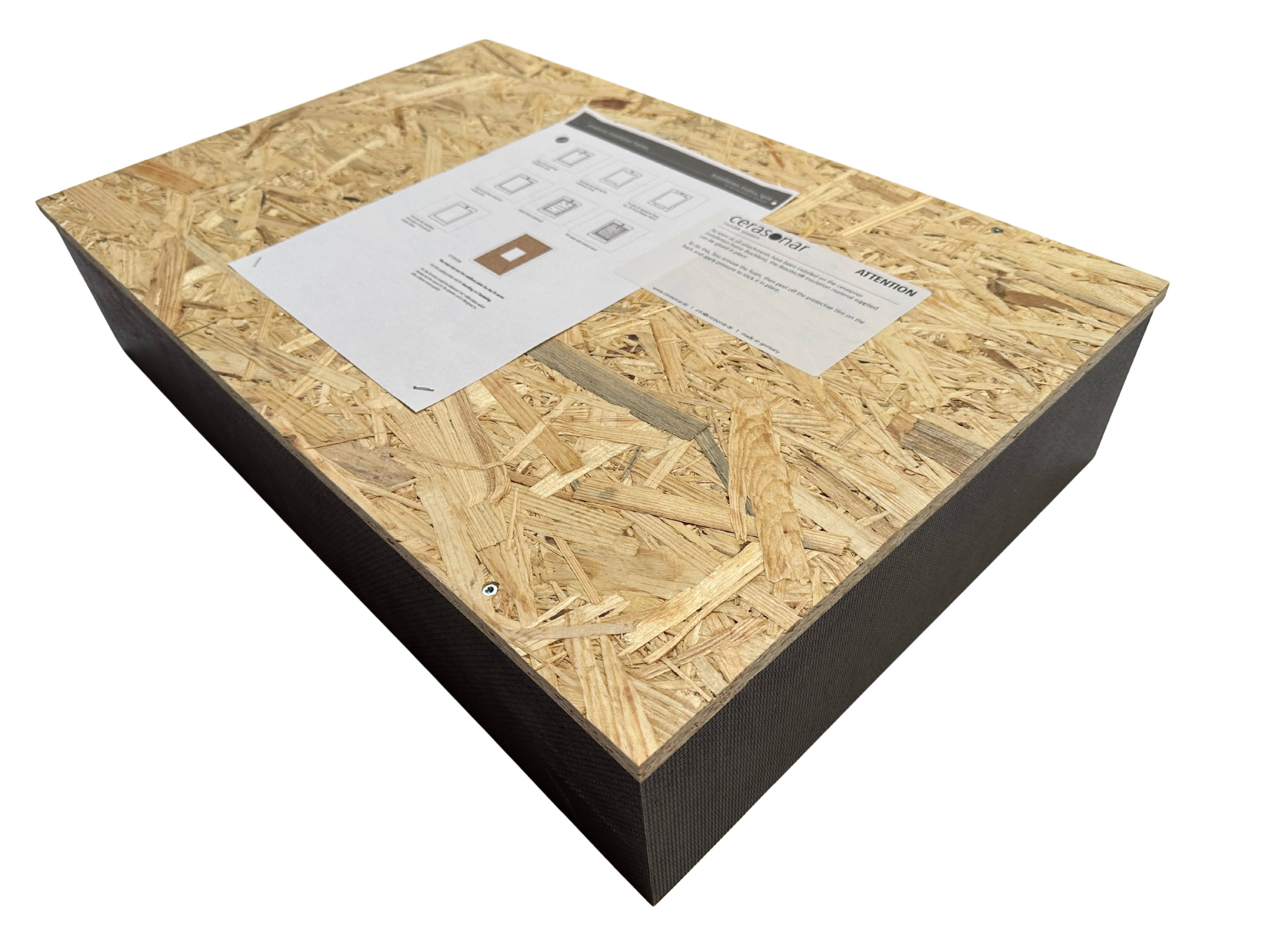

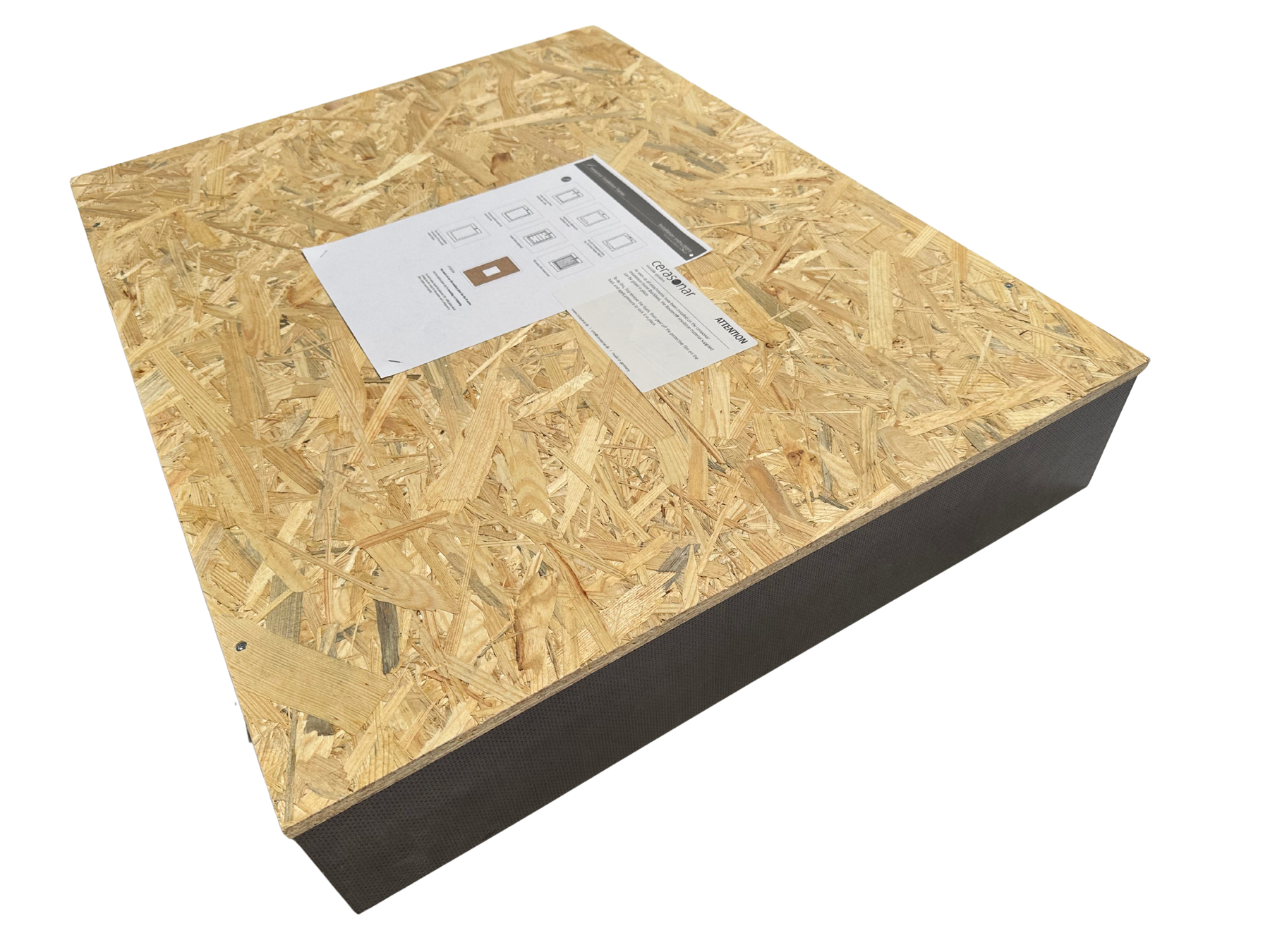

Chaque installation frame (backbox) est livré prêt à installer, avec des points de fixation prépercés, des presse-étoupes OBO avec décharge de traction intégrée, une absorption acoustique Basotect®, une plaque de protection OSB et des lattes d’alignement. Cela réduit le temps d’installation et favorise un processus de montage propre, fiable et reproductible.

Pour les différentes méthodes de construction, cerasonar propose des accessoires d’installation spécifiquement développés. Le drywall ceiling kit permet un montage rapide et précis dans les plafonds en plaques de plâtre. Le drywall ceiling anti-vibration kit ajoute des vibration dampers et réduit considérablement la transmission des vibrations solidiennes dans les structures de plafond suspendu.

Pour les murs massifs, le masonry installation kit comprend tous les composants de fixation nécessaires ainsi qu’une mousse de construction bicomposant à prise rapide pour une installation sûre.

Pour les aménagements intérieurs sur mesure, le panel pocket mount kit a été développé pour les constructions en bois, placage, HPL, MDF et panneaux de mobilier. Une poche usinée par CNC à l’arrière permet d’intégrer l’enceinte de manière entièrement invisible tout en préservant la surface visible. Le pocket mount double-sided tape spécialement adapté facilite le positionnement et la fixation initiale de l’enceinte avant la mise en place du support arrière.

Comme chaque composant cerasonar, l’installation frame (backbox) a été conçu pour fonctionner avec précision avec l’enceinte, l’amplificateur DSP et le préréglage DSP d’usine. Ensemble, ces éléments forment un système complet qui garantit des résultats acoustiques prévisibles, de la planification à la mise en service finale.

sizes and information for:

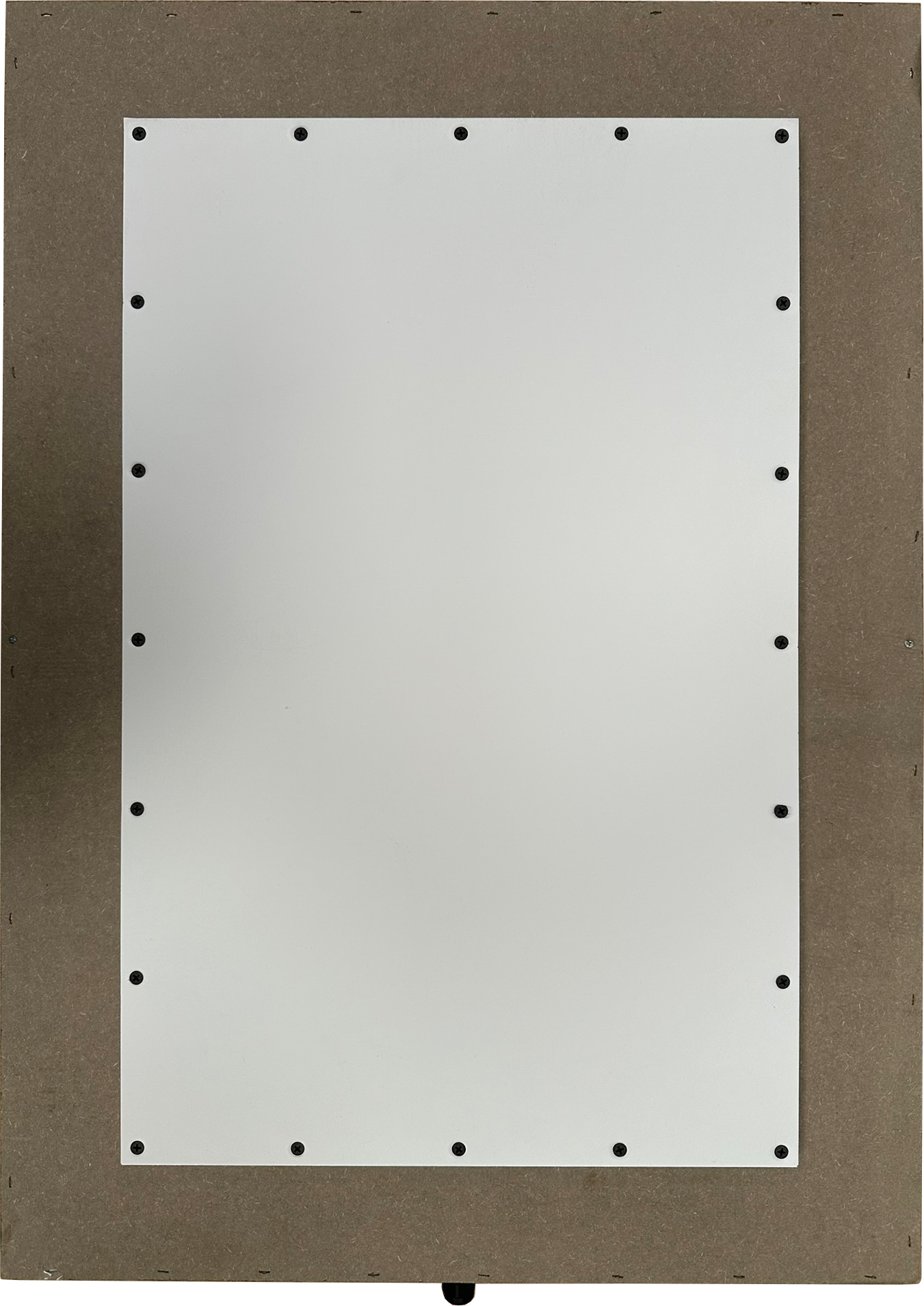

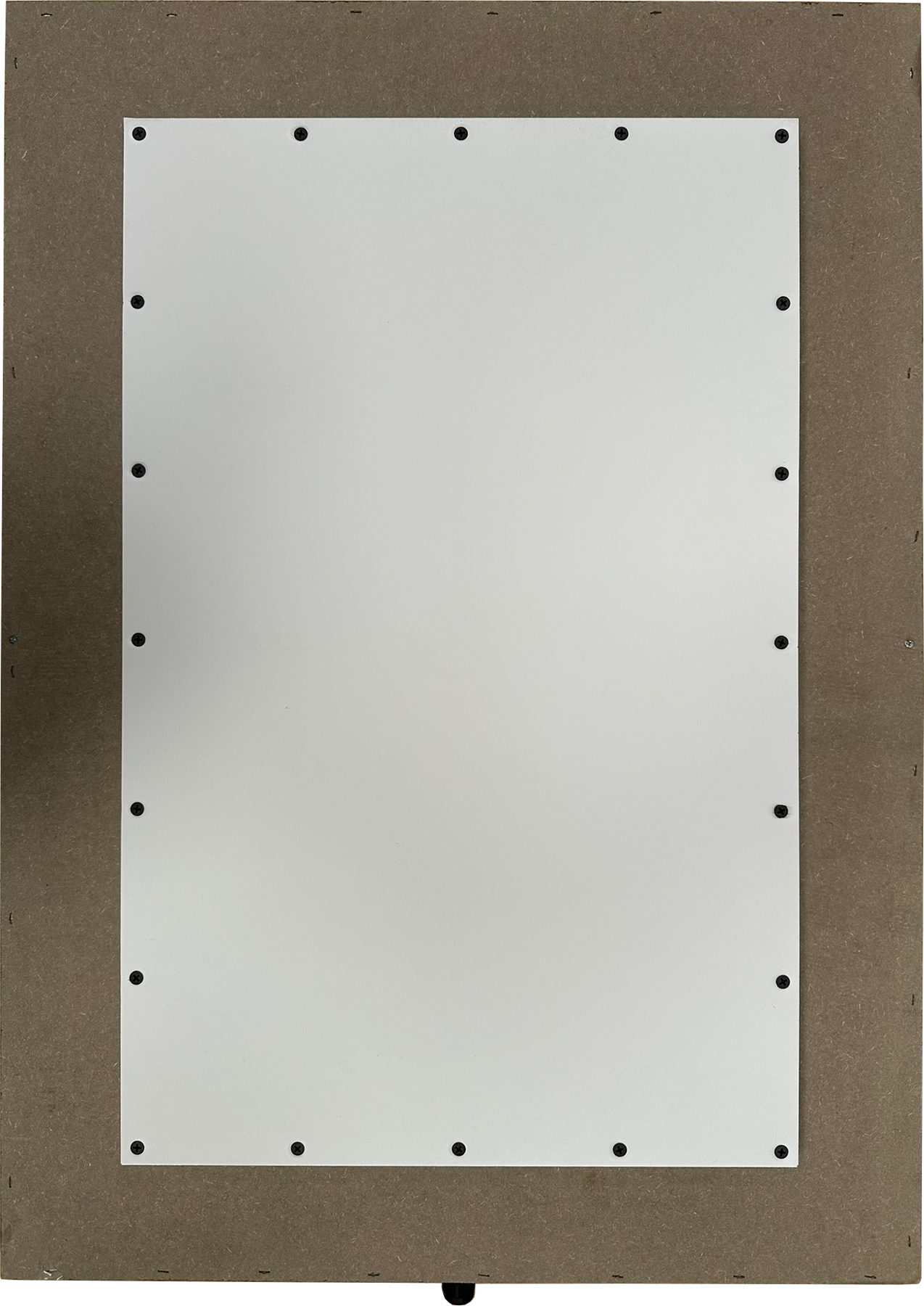

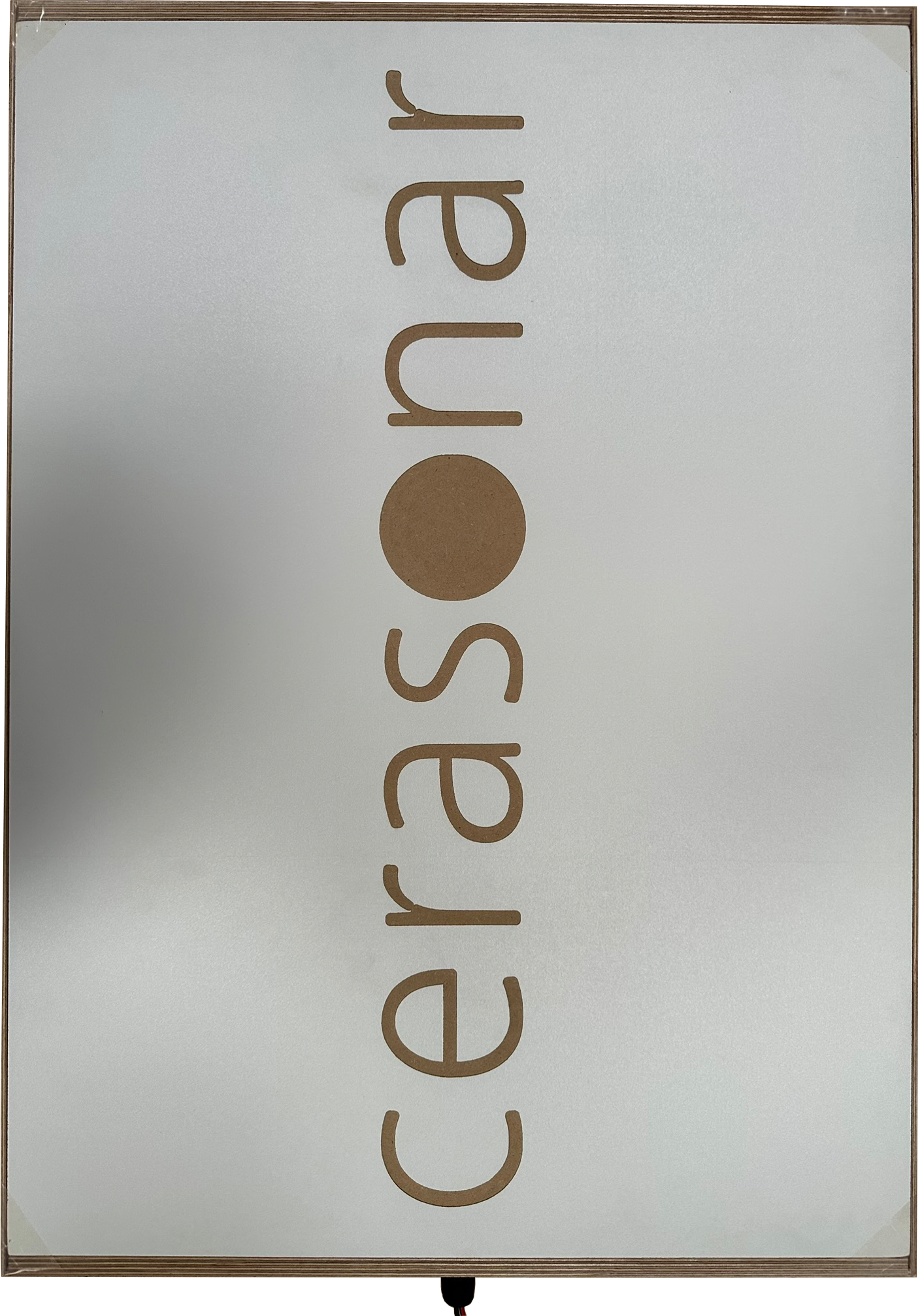

- 4062 architect

  • Only for drywall - very shallow only 5 cm incl. speaker!
  • Use cerasonar DSP settings with correct preset for best sound quality!
  • Plasterboard can be screwed all round the front plate of the housing (screw length no more than 25 mm)
  • Dimensions: 55,5 x 77,5 x 3,7 cm
    (4,9 cm incl. OSB plate)
  • Weight: X,X kg

sizes for:
- 1520 & 2525 fit

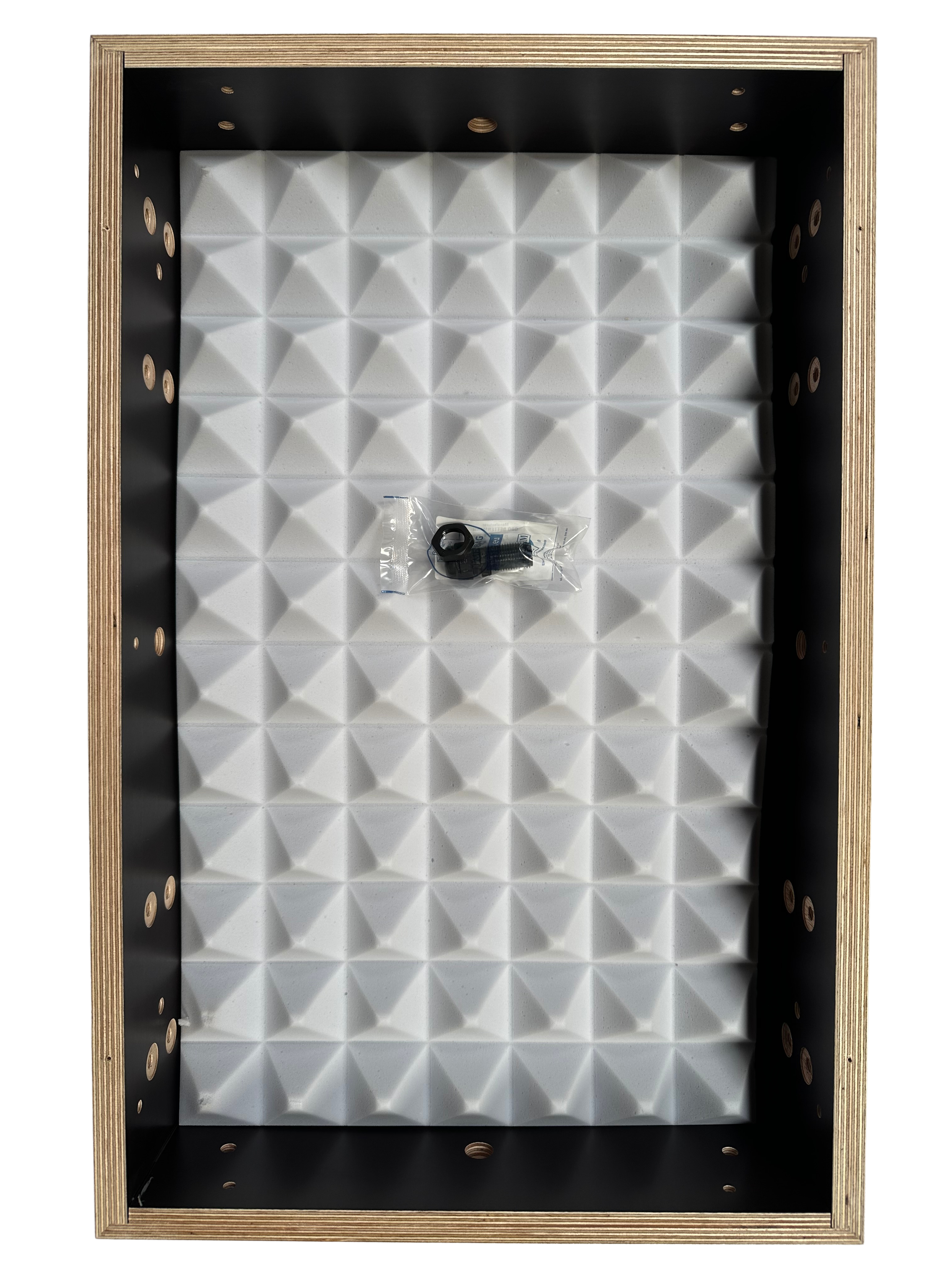

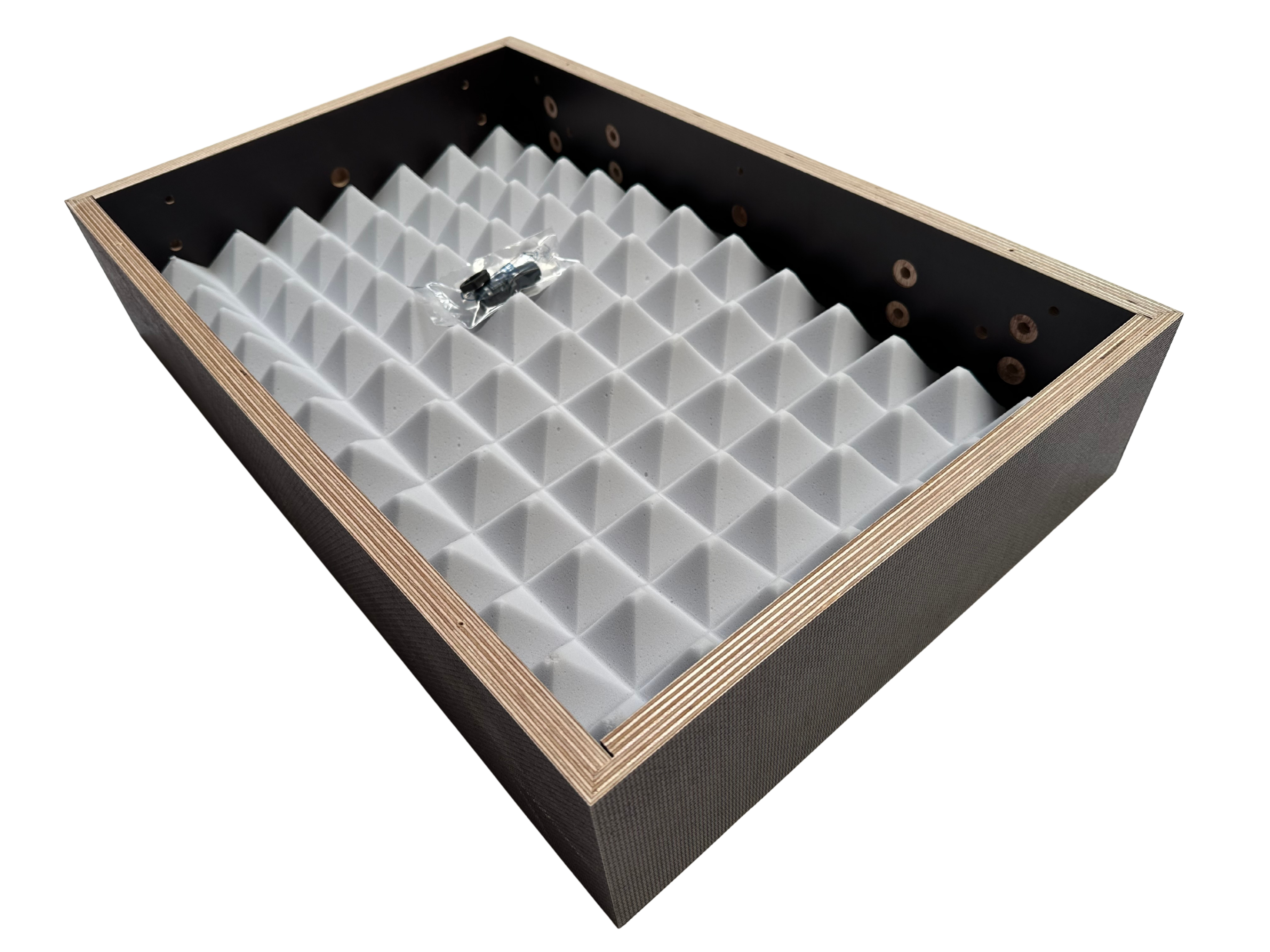

- 4062 reference (pro)

  • Installation cut out: 42 x 64 x 14 cm
  • Dimensions: 40,0 x 62,0 x 12,0 cm

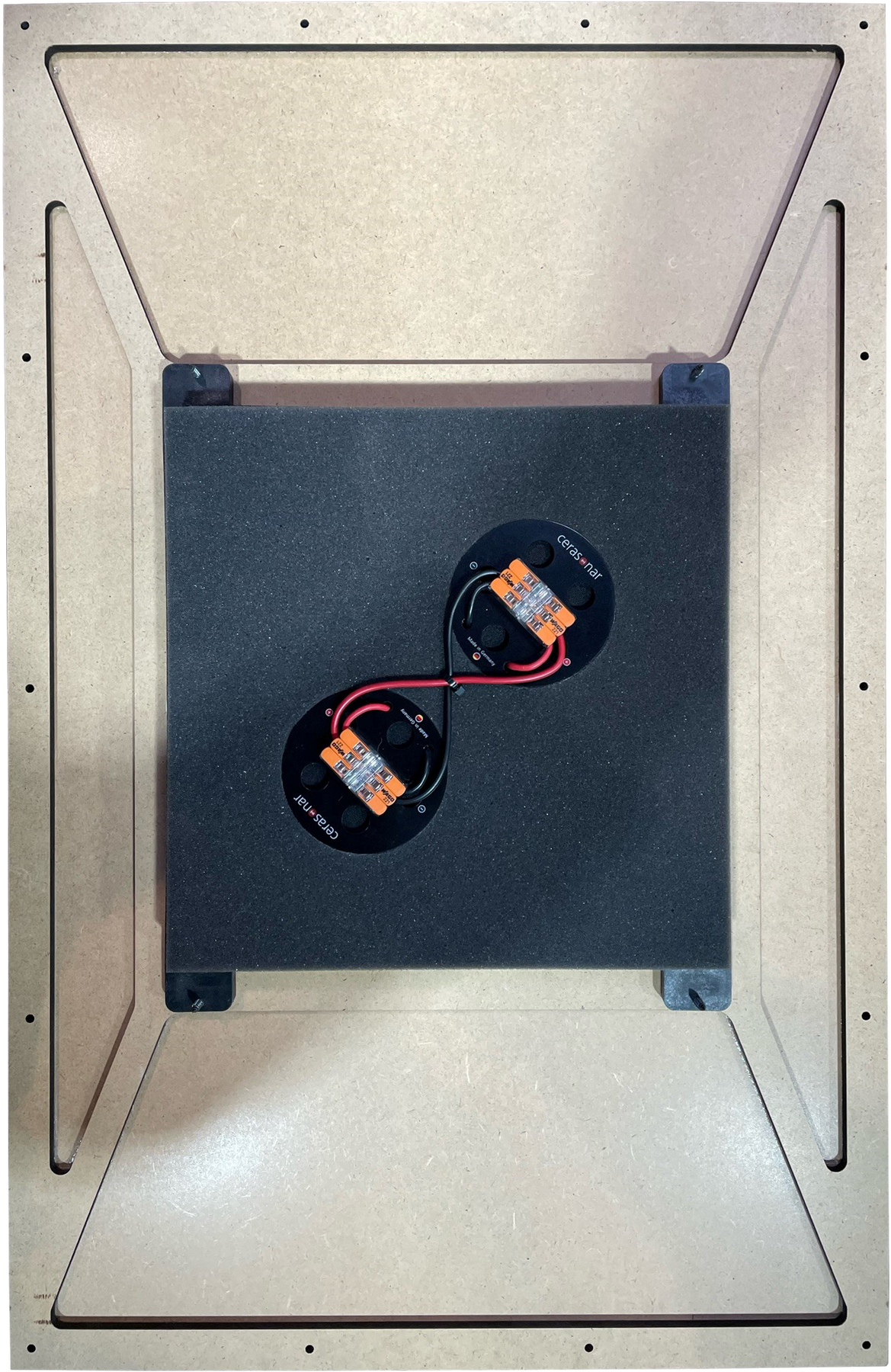

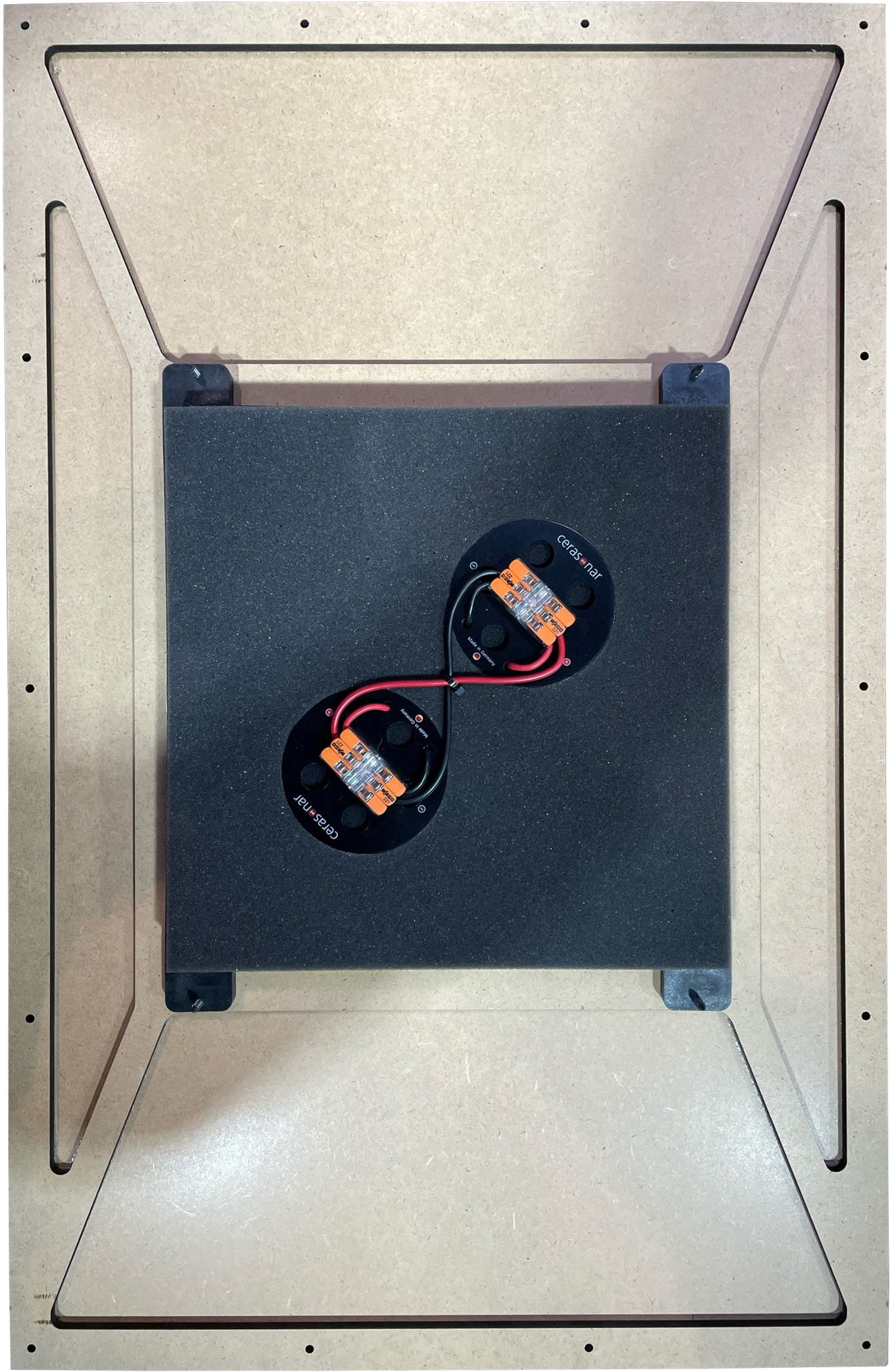

    (13,2 cm incl. OSB plate or CNC milled installation plate for 1520 & 2525 fit)
  • Weight: 4,8 kg

sizes for:
- 6062 reference (pro)
- 6062 sub

  • Installation cut out: 62 x 64 x 14 cm
  • Dimensions: 60,0 x 62,0 x 12,0 cm
    (13,2 cm incl. OSB blank plate)
  • Weight: 7,1 kg

sizes for:

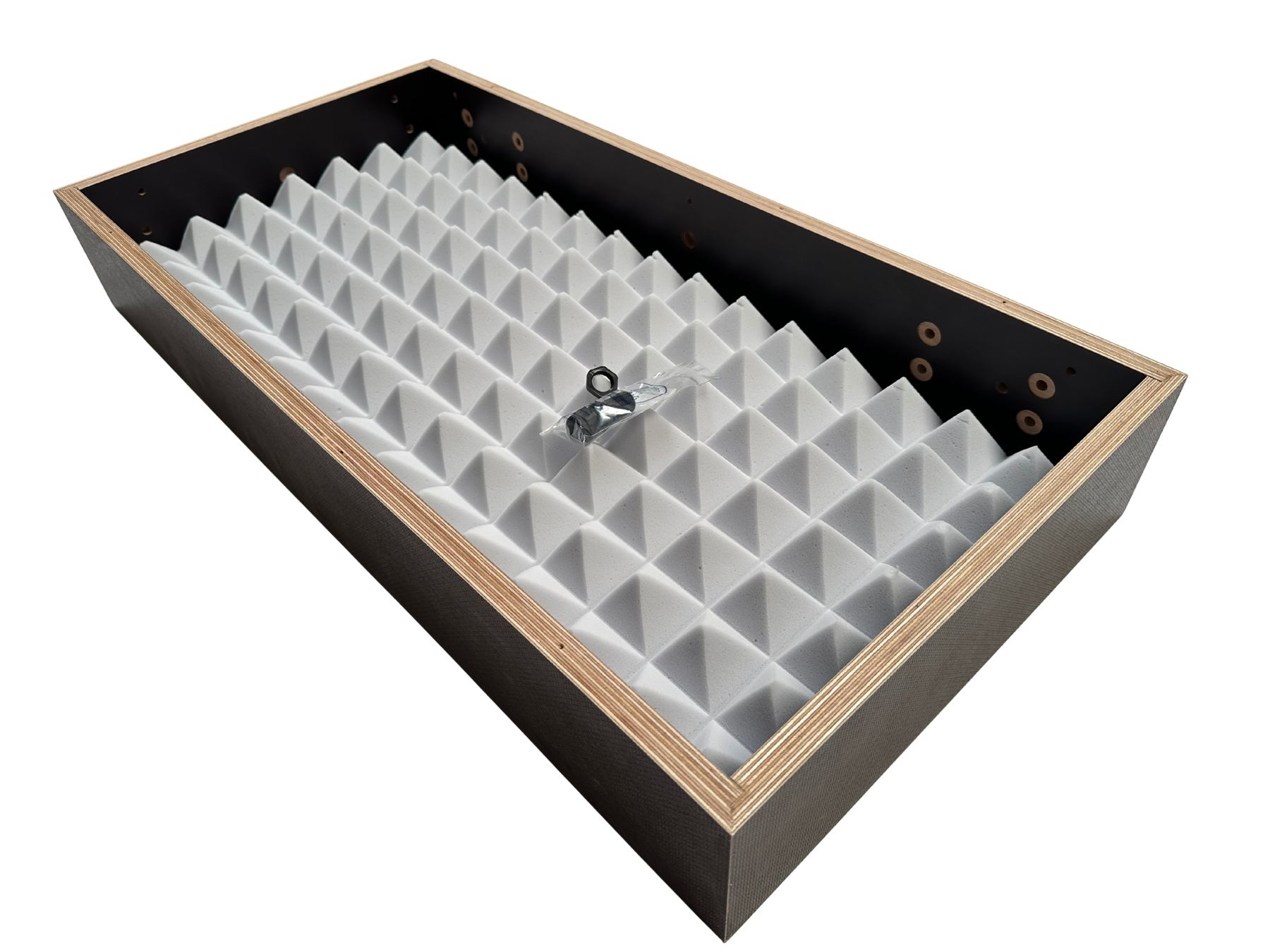

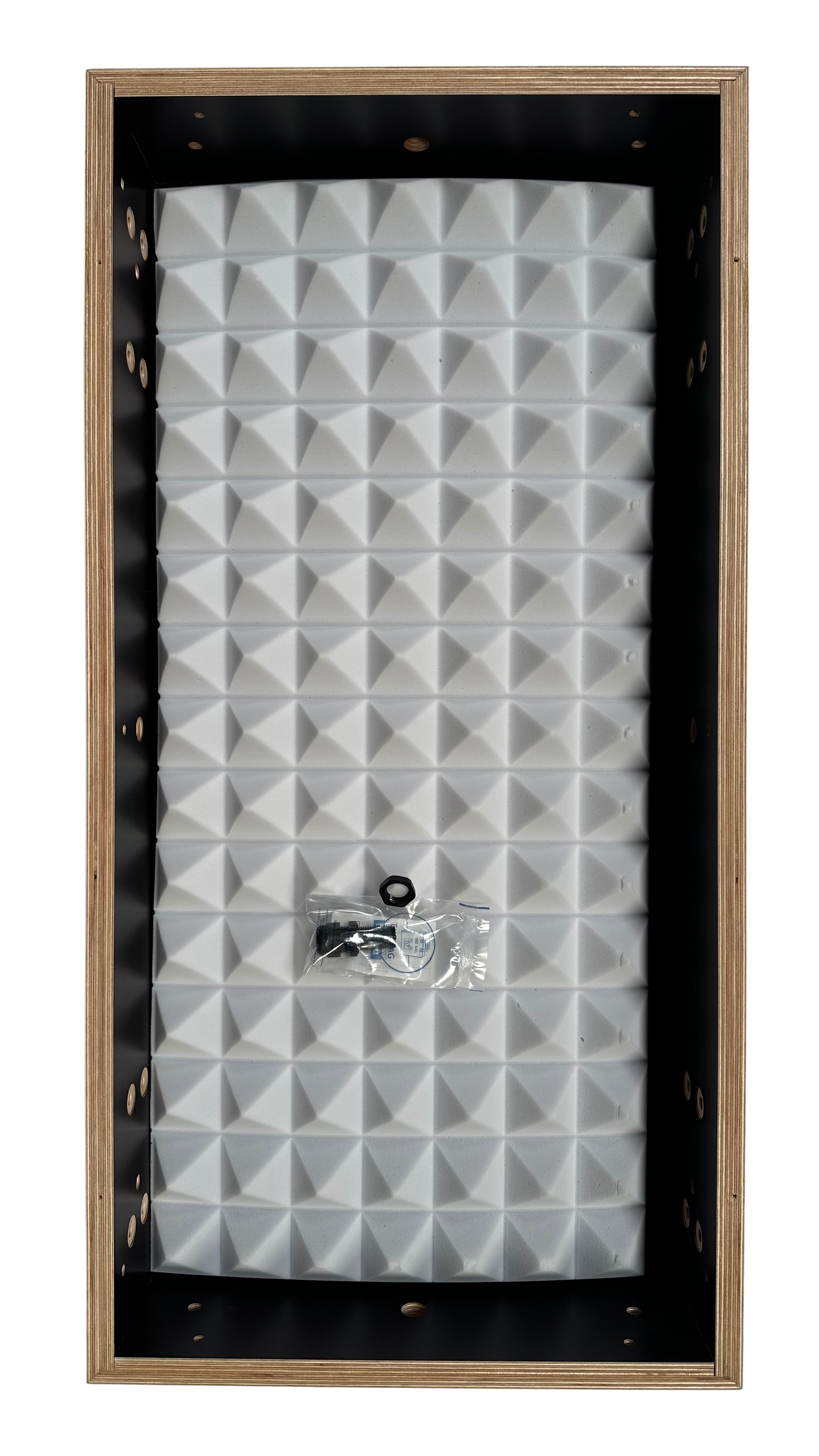

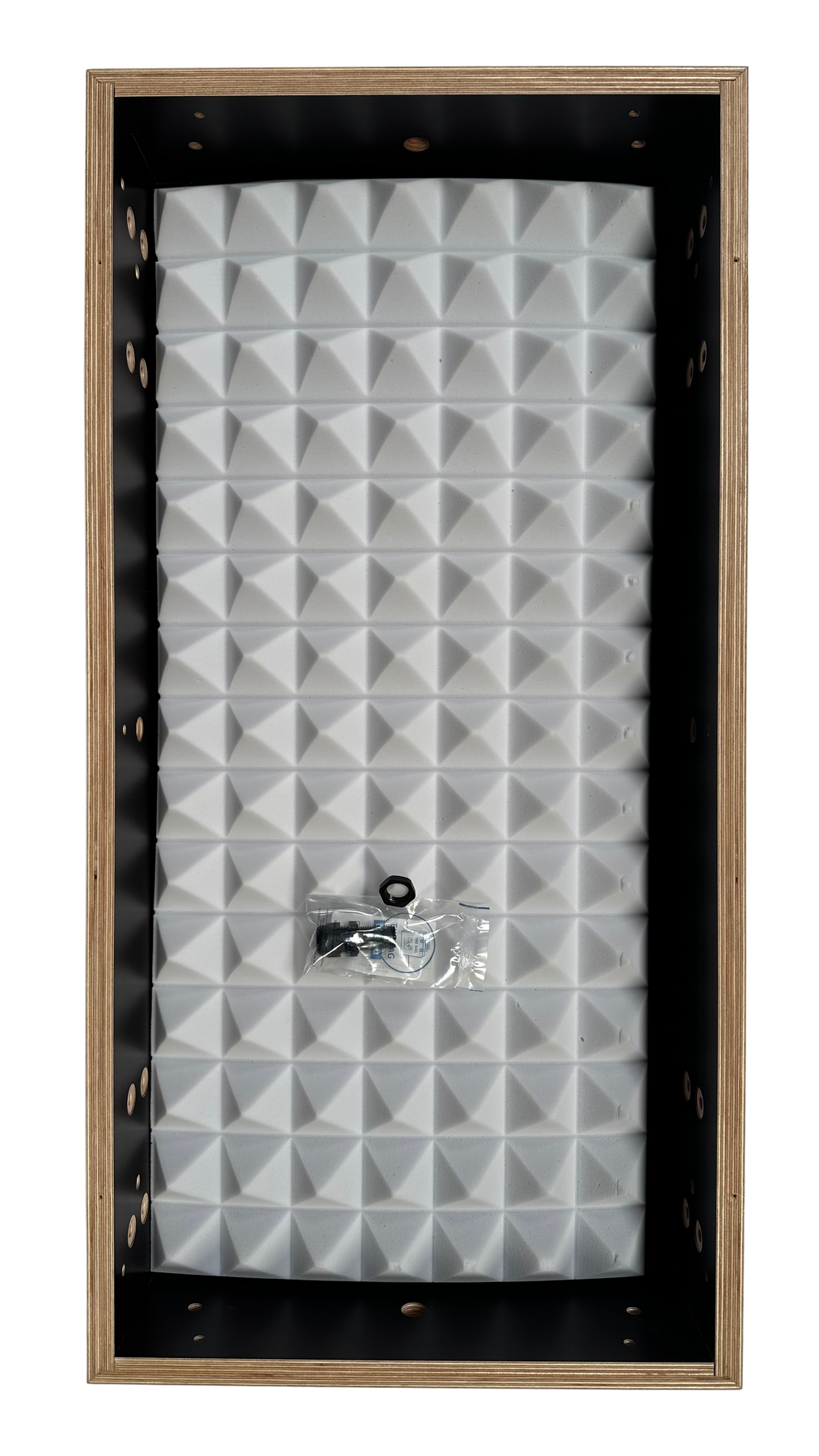

- 4080 ultimate

  • Installation cut out: 42 x 82 x 14 cm
  • Dimensions: 40,0 x 80,0 x 12,0 cm
    (13,2 cm incl. OSB blank plate)
  • Weight: 6,1 kg

sizes for:
- 10040 sub

  • Installation cut out: 42 x 102 x 14 cm
  • Dimensions: 40,0 x 100,0 x 12,0 cm
    (13,2 cm incl. OSB blank plate)
  • Weight: 7,7 kg

sizes for:
- 13362 sub

  • Installation cut out: 135,5 x 64 x 16,5 cm
  • Dimensions: 133,5 x 62 x 14,5 cm
    (15,7 cm incl. OSB blank plate)
  • Weight: X,X kg

DOWNLOAD the latest datasheet for the cerasonar installation frame (backbox) (PDF). Includes model compatibility, enclosure dimensions, OSB protection panel details and rear installation clearance information.

DOWNLOAD the architectural specification for the cerasonar installation frame (backbox) (PDF, nine languages). Use the tender text to define the loudspeaker model, backbox variant, construction and installation scope.

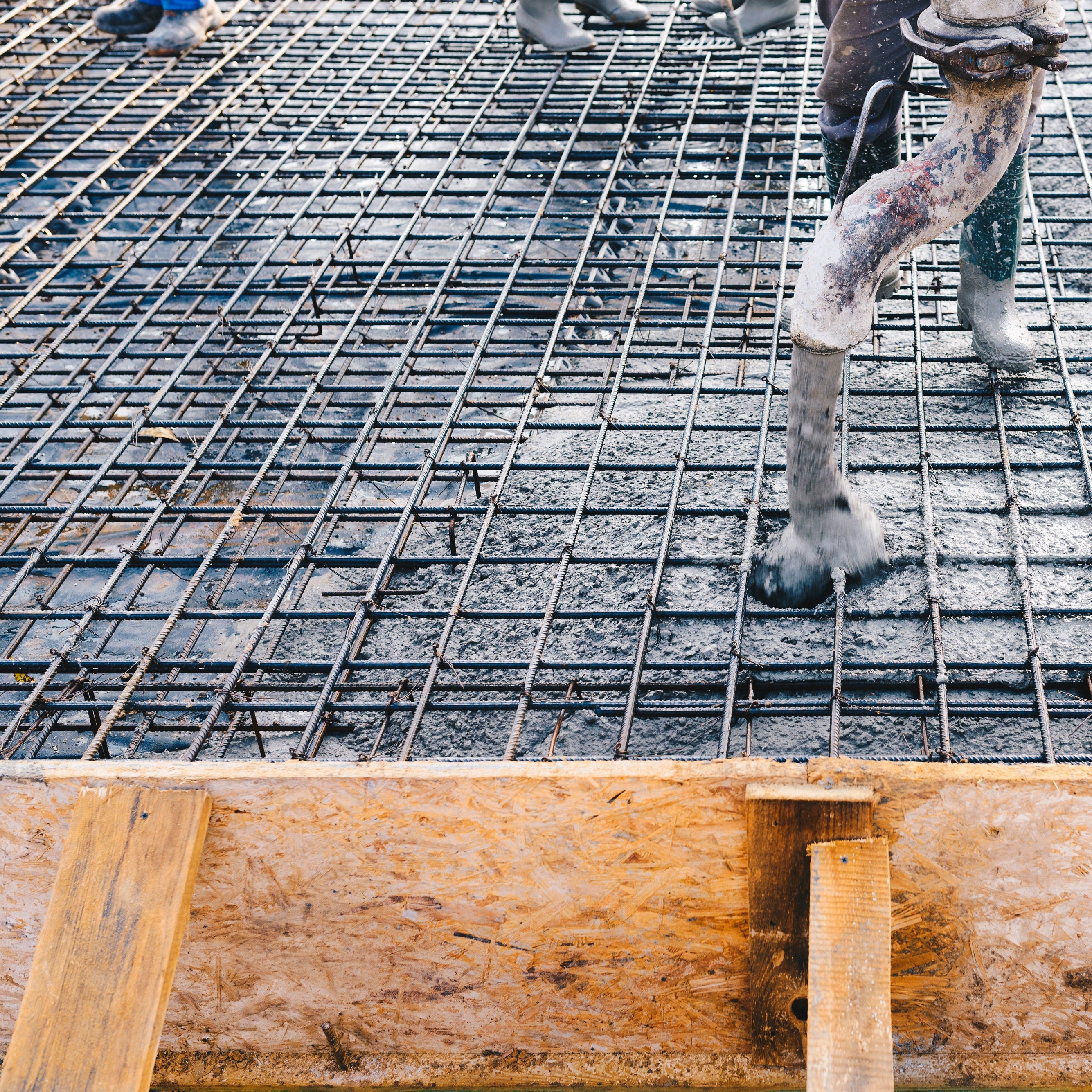

IN-SITU CONCRETE INSTALLATION

delivery content of cerasonar frame:
o Sturdy & waterproof glued "trailer" plywood housing
o High quality Basotect® damping material
o Cable gland with integrated strain relief

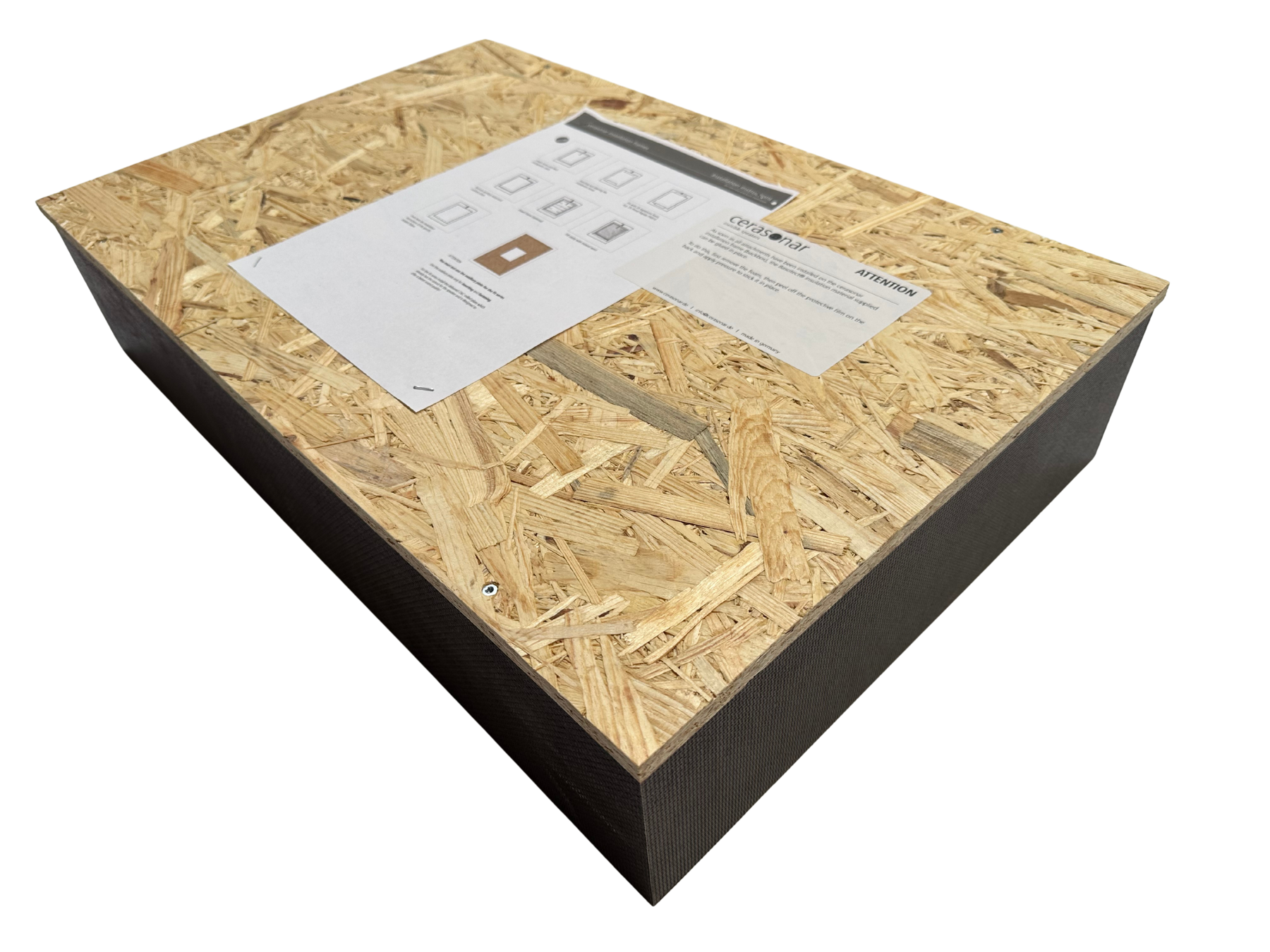

o OSB blind panel & alignment battens
o Frame comes with pre-drilled holes for easy & fast installation

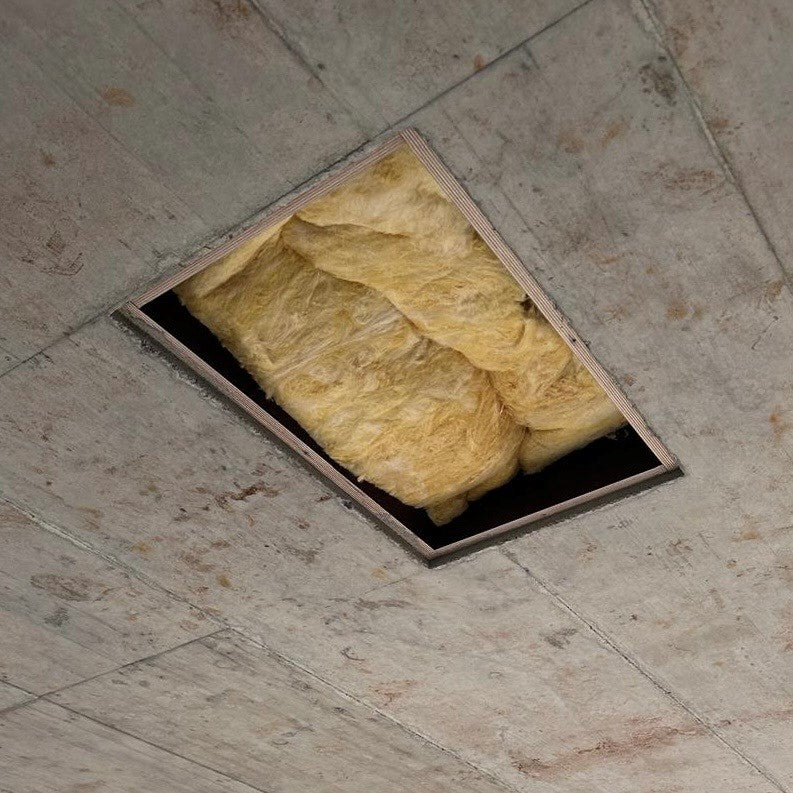

In-Situ Concrete Installation:
Dismantle the OSB blind panel, enlarge the cable pre-drill hole with a 16 mm drill, remove the separating film from the damping material and glue it into the installation frame, insert the OBO cable gland and tighten the nut.

Then insert the loudspeaker cable.

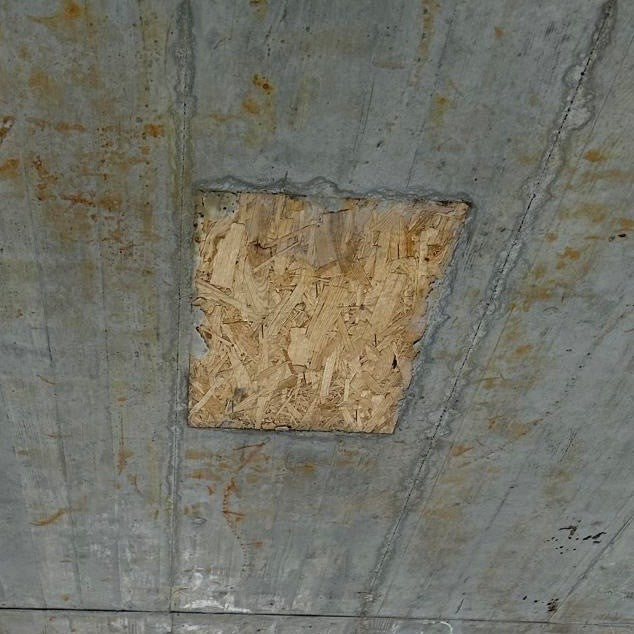

Place the installation frame with the reassembled OSB blind panel in the desired position on the formwork and secure it. After concreting, remove the OSB blind panel. The loudspeaker can now be installed.


TIP:
If not only the joints are to be sealed and more than 2 mm levelling compound is to be applied to the in-situ concrete ceiling, fit a thinner OSB blind panel, e.g. 9 mm, so that the maximum application thickness on the speaker of 2 mm is not exceeded.

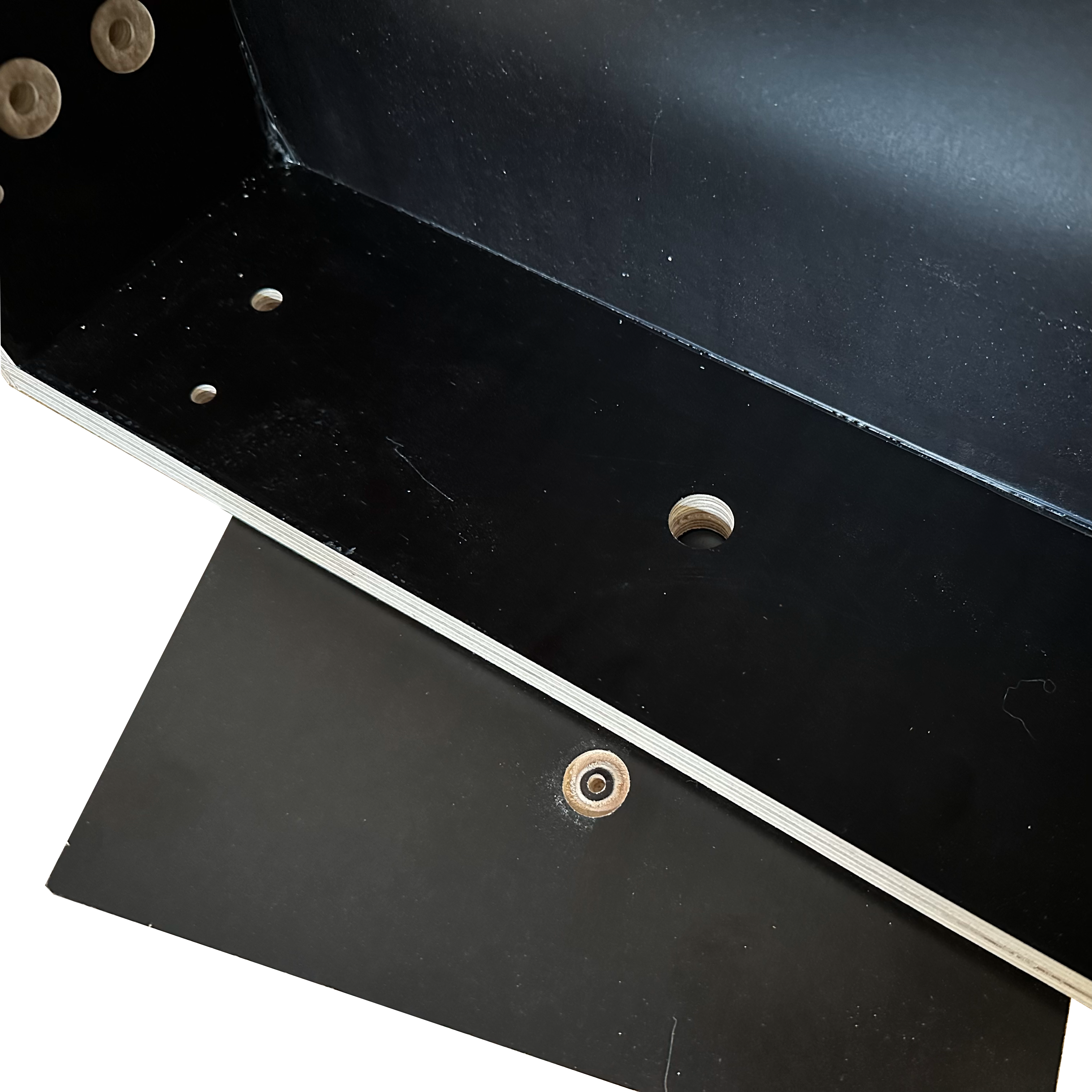

Always use a scrap piece of wood as a base when drilling to prevent the drill edge from fraying.

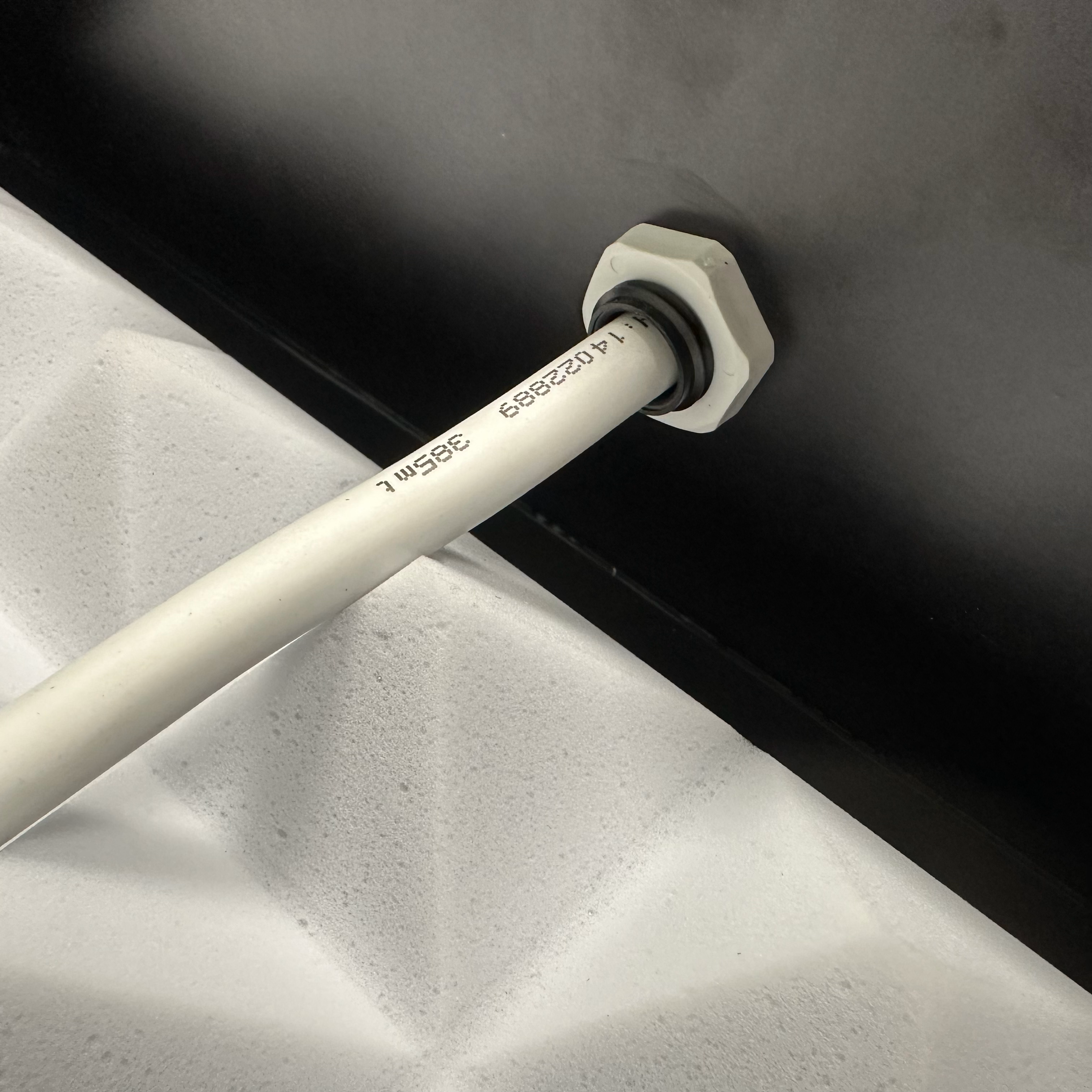

Secure the OBO cable gland with the supplied nut, feed the loudspeaker cable through and secure the cable against pulling by screwing the outer black plastic cover.

After removing the formwork, remove the OSB blind panel. The loudspeaker can then be installed.

Easy and neat to use

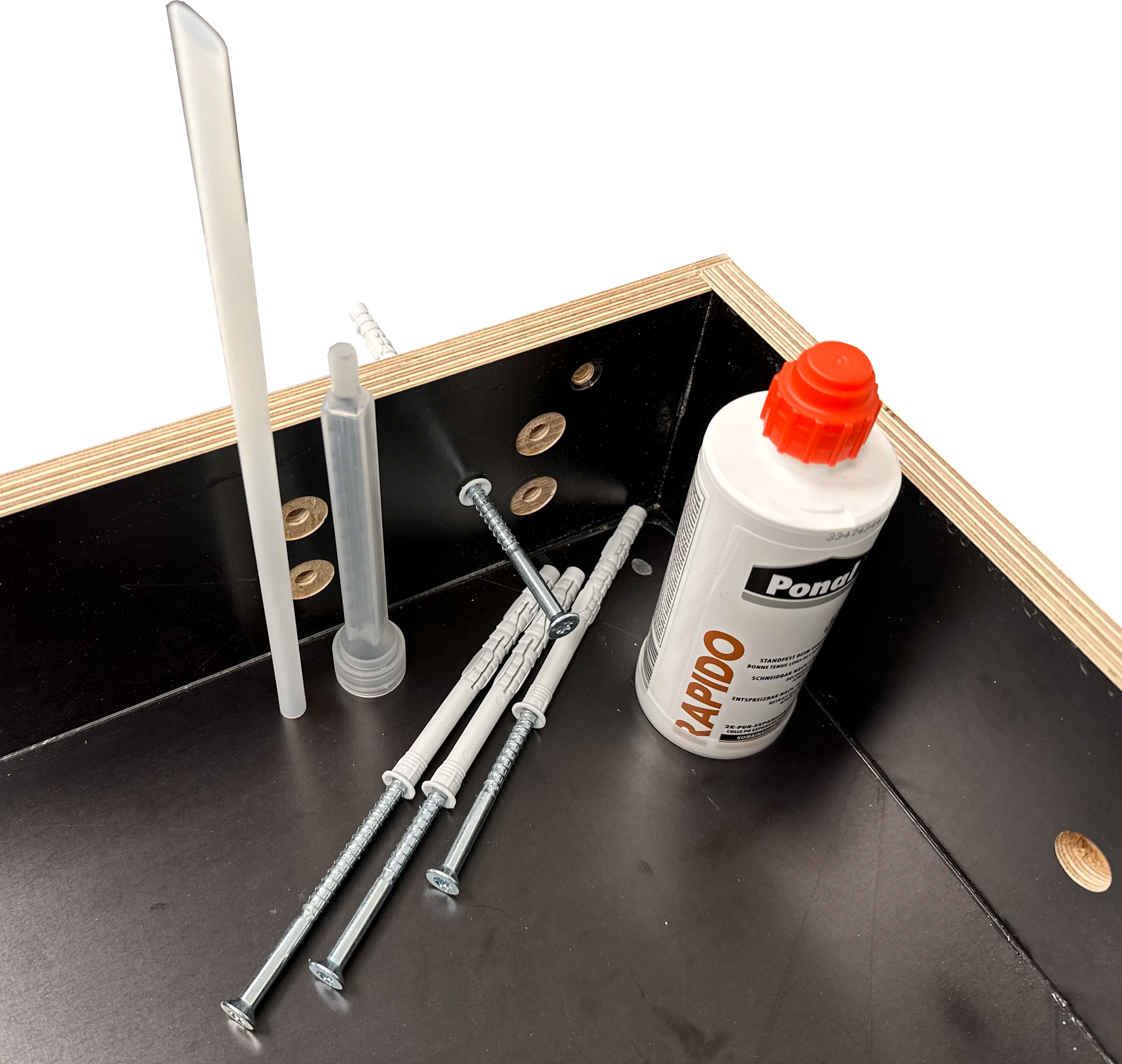

masonry installation kit

delivery content:

  • Masonry installation set consisting of:
    - Frame dowels with countersunk Torx screws (8x100 mm)
    - Ponal PNR10 (fast-curing, 2-component construction foam) (or similar)
check out the masonry installation kit

Masonry installation:

Create a sufficiently dimensioned niche in the masonry, leaving enough space all round, including for the syringe of the construction foam.
Install the cable gland and damping material as described above and then refit the OSB blind panel. Screw the alignment battens to the OSB blind panel.
Now align the installation frame in the centre of the niche and fit the alignment slats to the wall.
Fill the surrounding slot with sufficient construction foam and remove the alignment slats and OSB blind panel once dry. If necessary, fit frame dowels for reinforcement. The loudspeaker can now be installed.

TIP:
If a very deep niche is available, the rear volume can be used to increase the bass reproduction. To do this, drill a hole in the rear wall of the installation frame using a large circular drill.

EASY CEILING INSTALLATION

drywall ceiling kit

delivery content:

  • Drywall installation set consisting of:
    - Installation battens
    - Drive-in nuts
    - Screws
check out the drywall ceiling kit

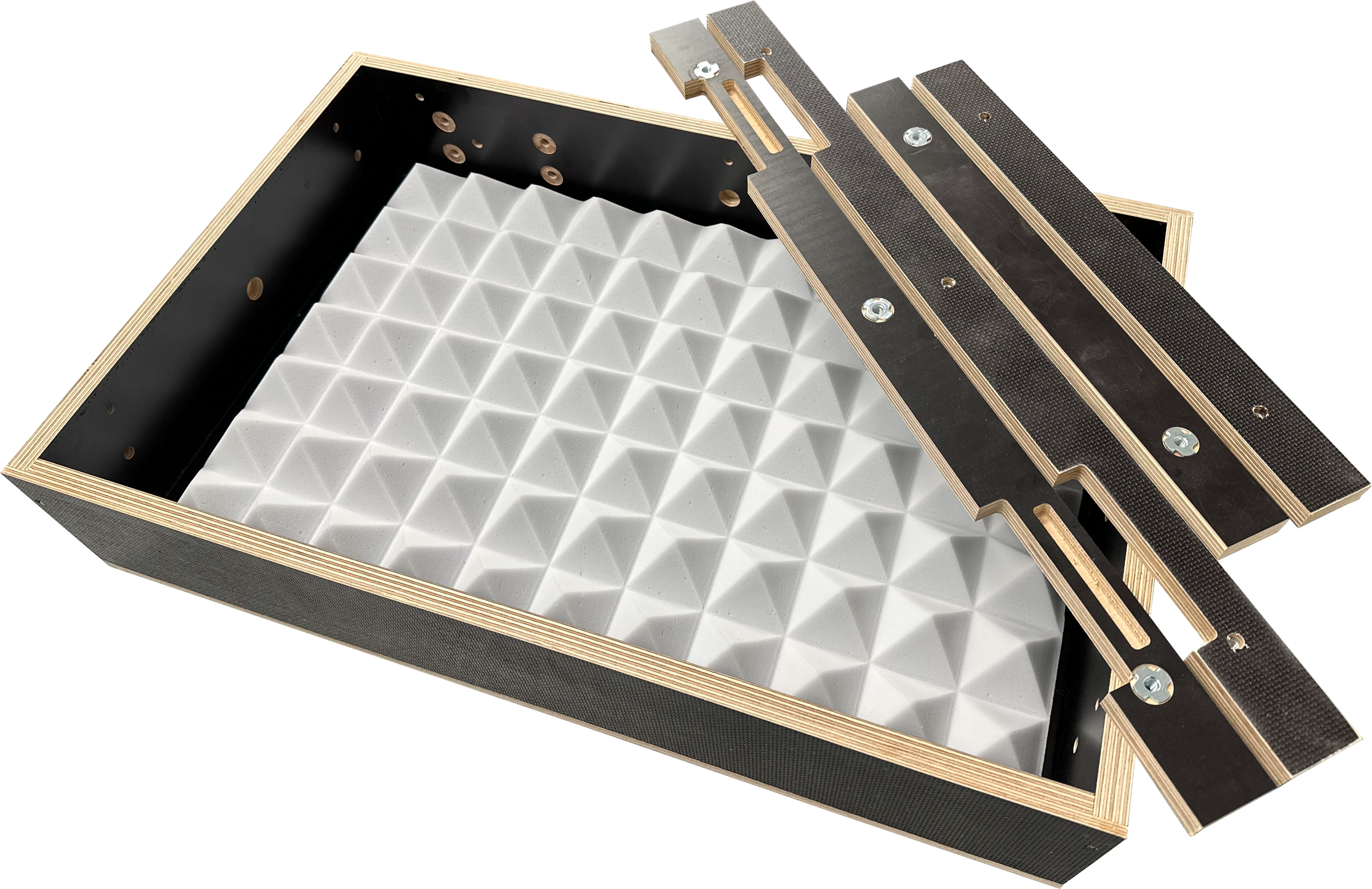

EASY CEILING INSTALLATION

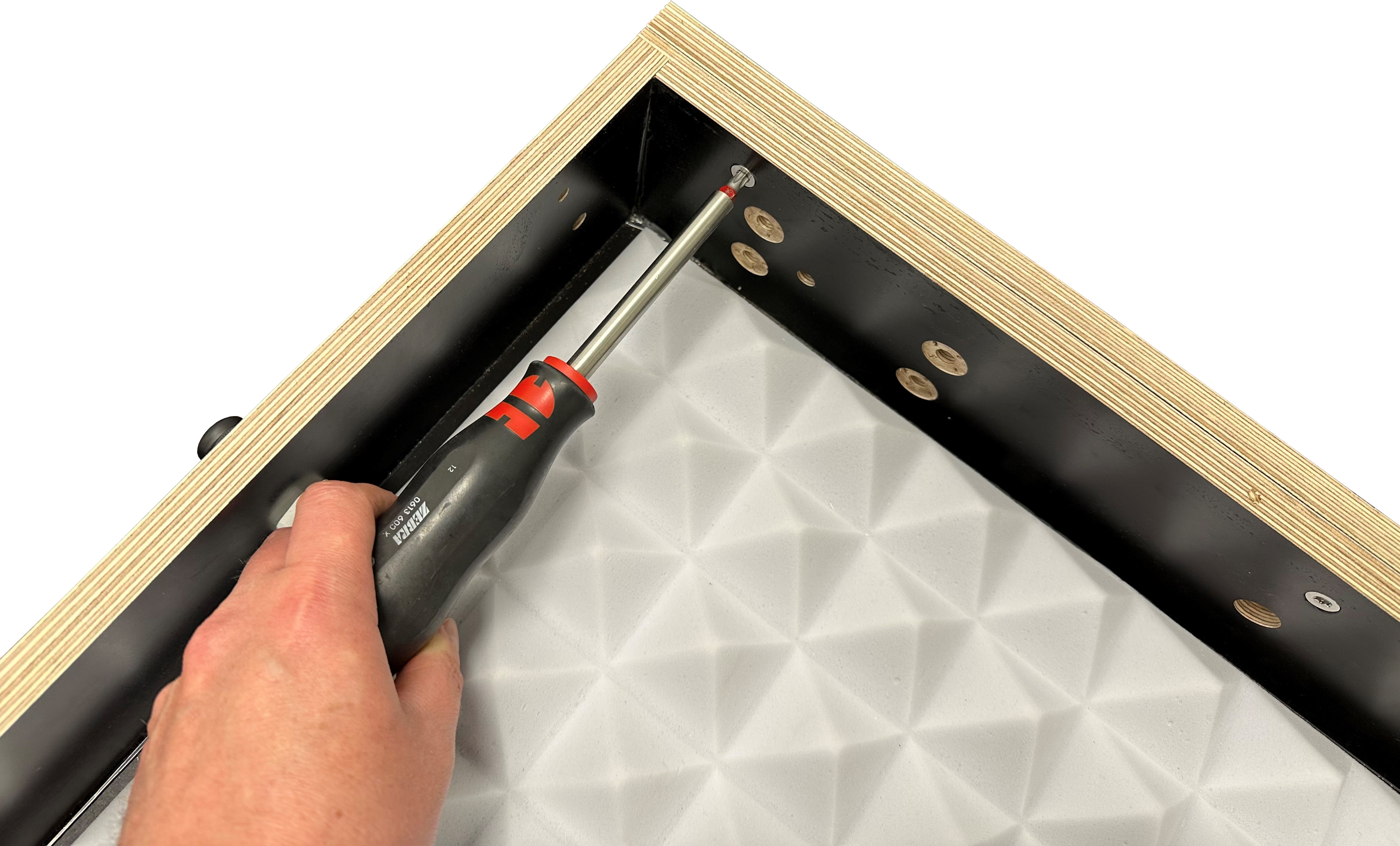

Make a sufficiently dimensioned cut-out in the plasterboard (1-2 mm larger than the speaker), mount the long installation battens with the enclosed metric screws. Ensure that the battens are flush with the rest of the frame. Insert the installation frame into the opening at an angle.
Install the cable gland and damping material, see above.
Then fit the two short installation battens by carefully moving the installation frame in the ceiling.
Now align the housing in the centre of the opening. The screws are screwed through the plasterboard into the installation battens, one screw every 10 cm.

Structure-borne noise reduction

drywall ceiling anti-vibration kit

delivery content:

  • Ceiling & vibration installation set consisting of:
    - Installation battens
    - Drive-in nuts
    - Screws
    - Pre-assembled dampers
check out drywall ceiling anti-vibration kit
rubber buffers effectively reduce structure-borne noise

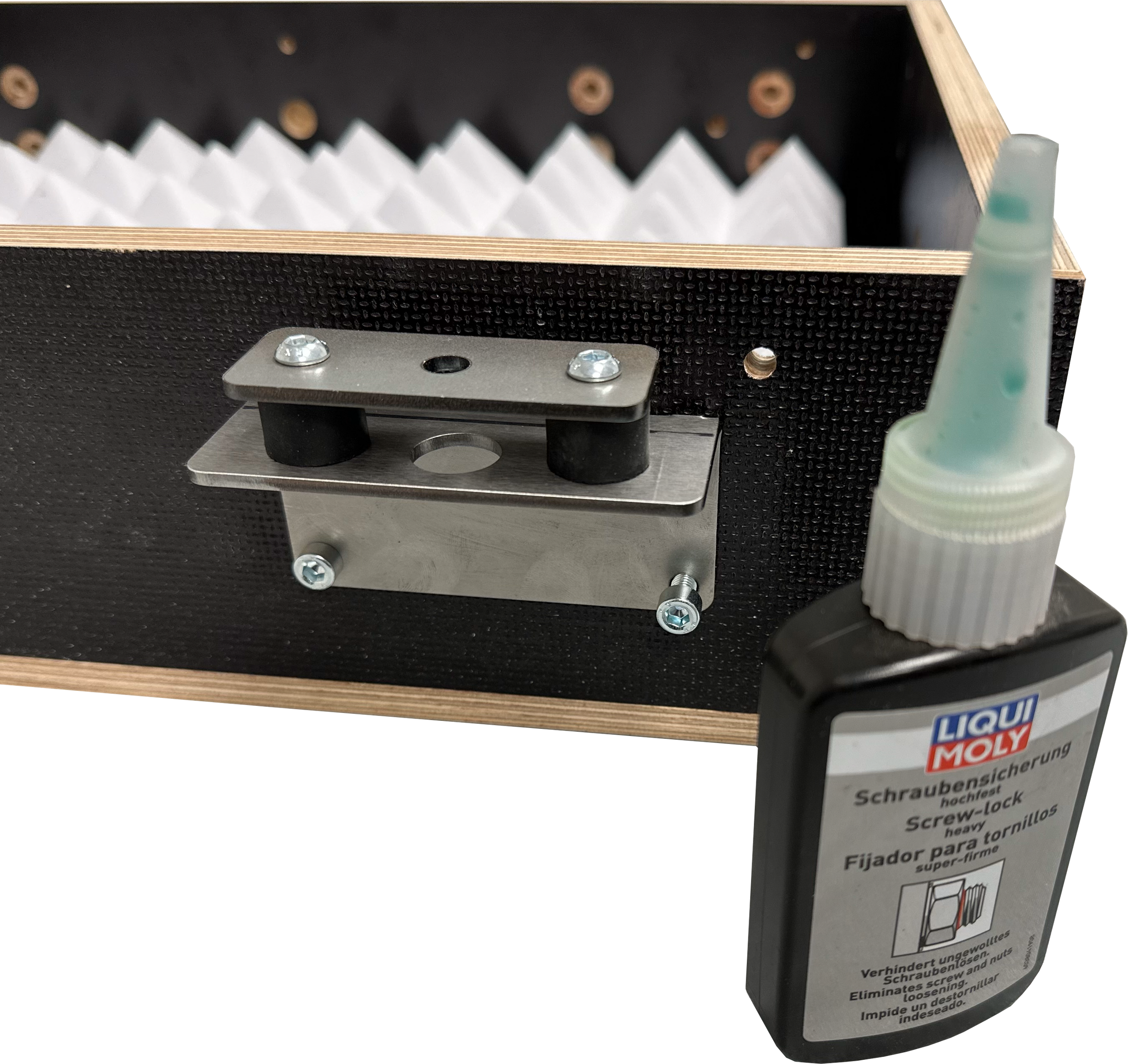

Vibration damper installation

Four M8 threaded rods are mounted on the ceiling. The installation height of the installation frame must then be determined. Use M8 nuts to create a limit stop and then insert the installation frame, readjust if necessary and screw in place (be sure to use screw locking!). Then fit the installation battens and screw the plasterboard to the installation battens.

Attention: Delivery without M8 threaded rods and dowels. Only suitable for ceiling installation!
